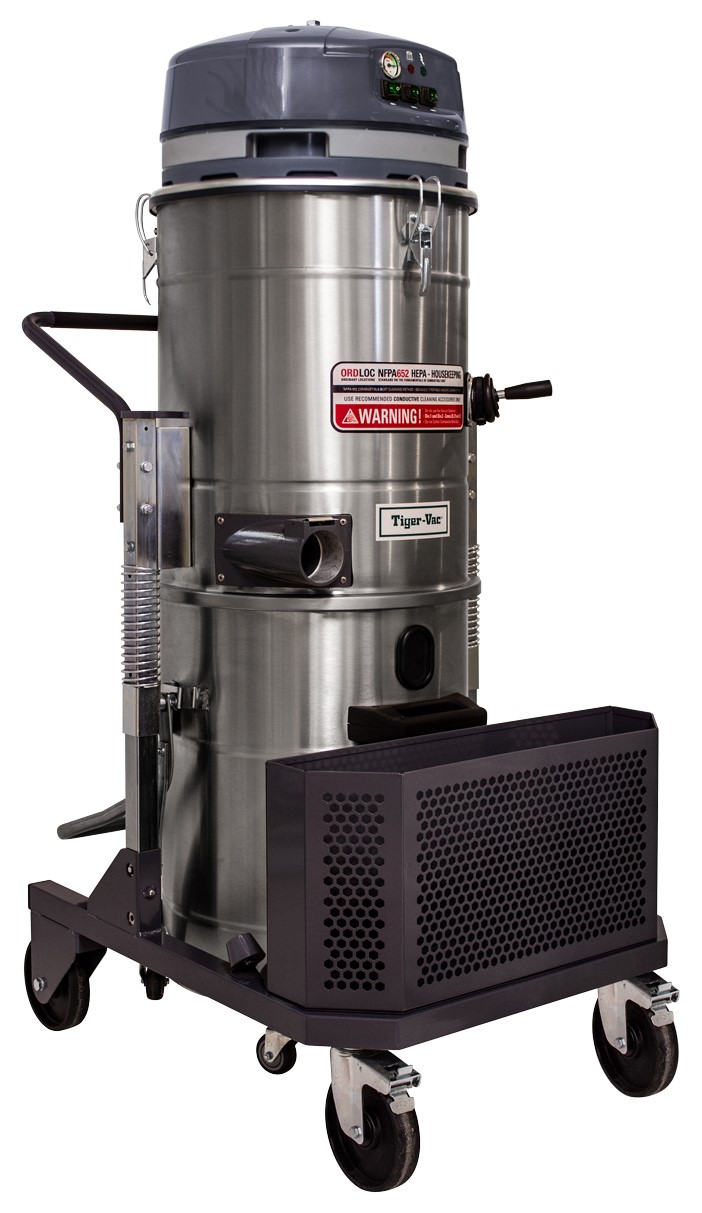

TV-200 HEPA ORDLOC-652

  • Complies with NFPA 652 paragraph 8.4.2.2.1.7 and NFPA 654 paragraph 8.4.3.7 (1) to (7)
  • A very powerful machine capable of working with large diameter suction hoses up to 70 mm. Perfect for the Food industry, machine shops, Plastics industry, Ceramics industry, printing, textiles, heavy clean-up, etc.

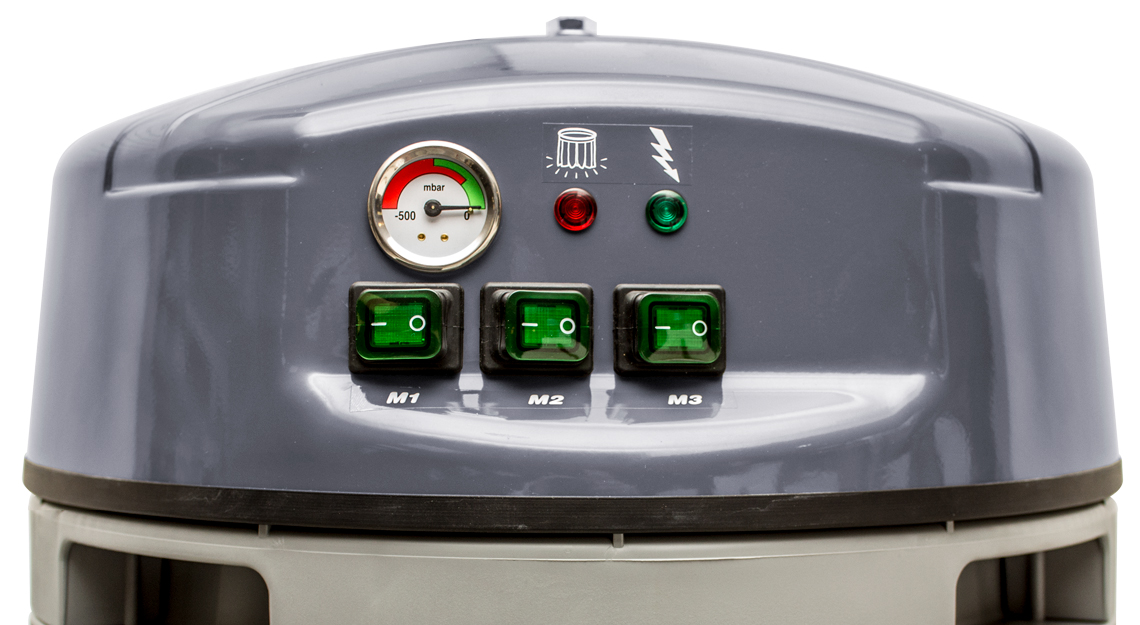

  • 3 motors (individual). 1, 2 or 3 motors can be used at one time

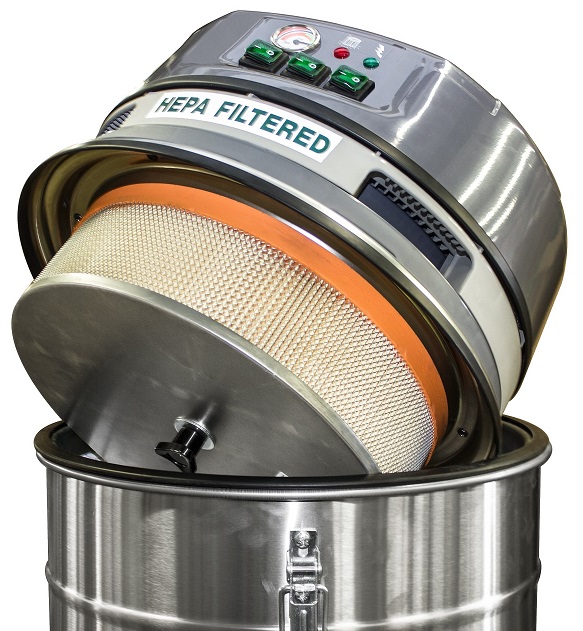

  • HEPA Filter with a minimum efficiency of 99.97% at 0.3 micron – included

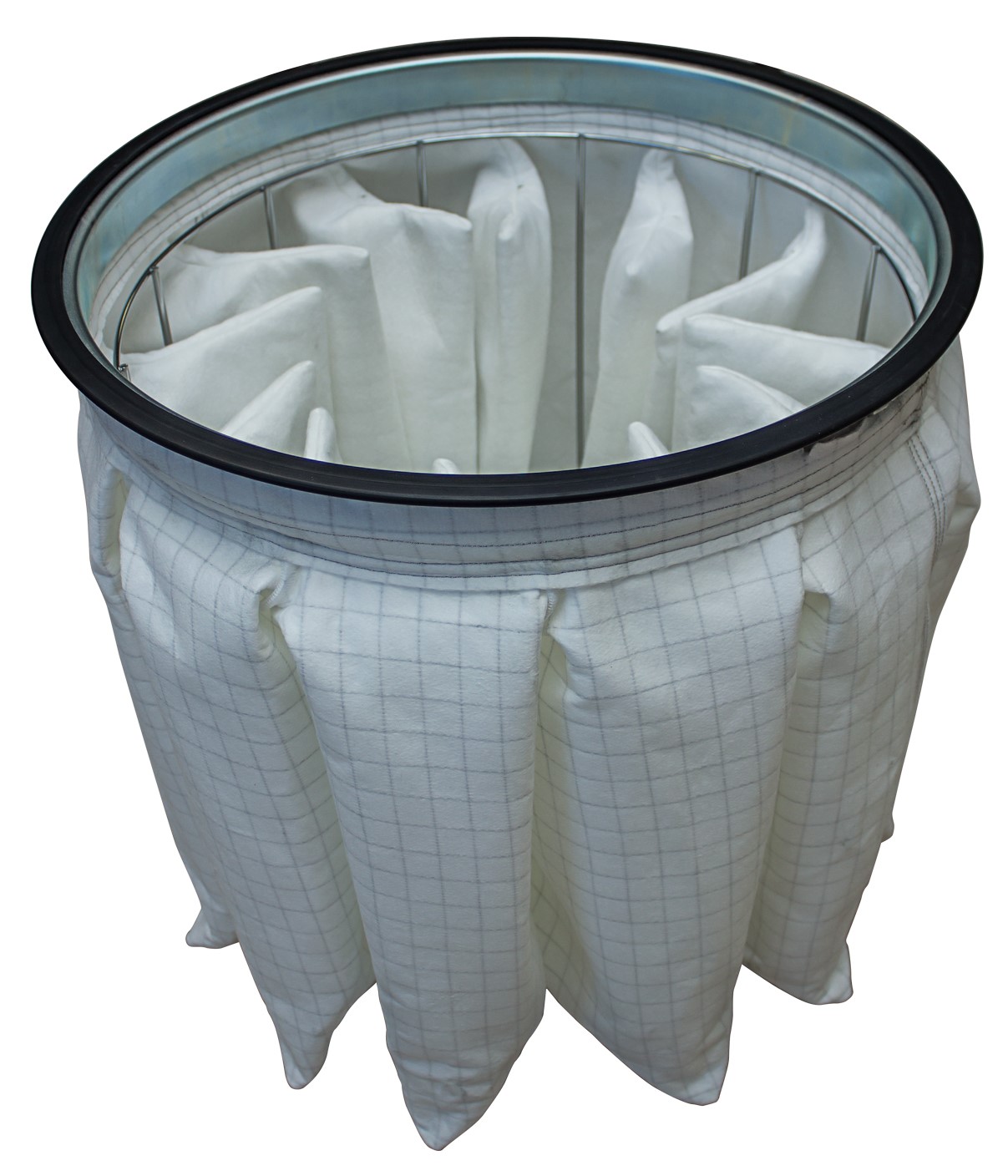

  • Includes a conductive star-shaped main filter

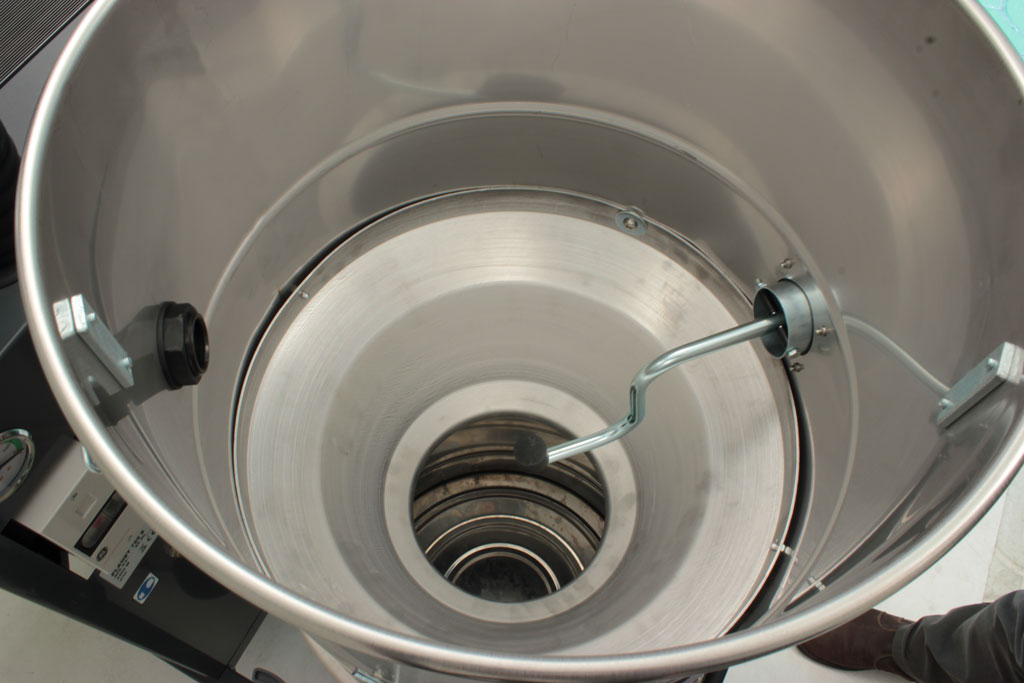

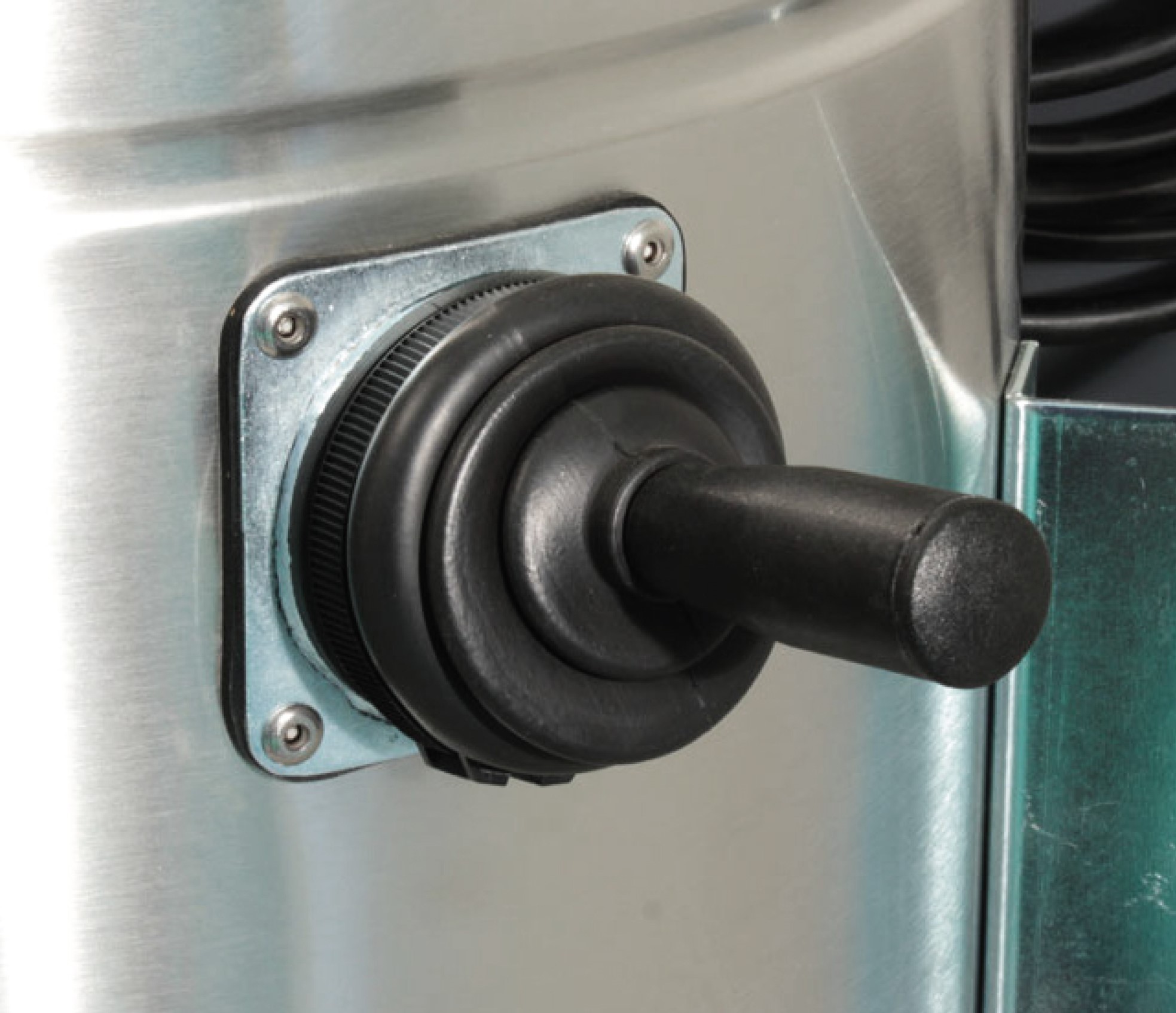

  • Manual Filter Shaker (MFS) system
  • Filter chamber and recovery tank made of stainless steel Type 304

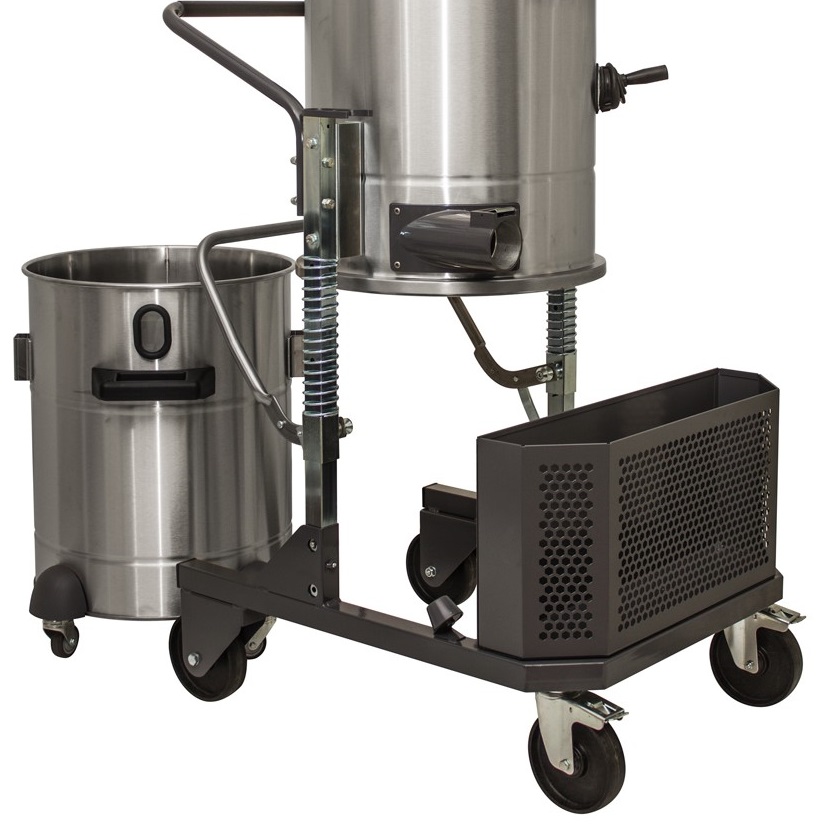

  • Detachable recovery tank (DT) for easy disposal of recovered materials

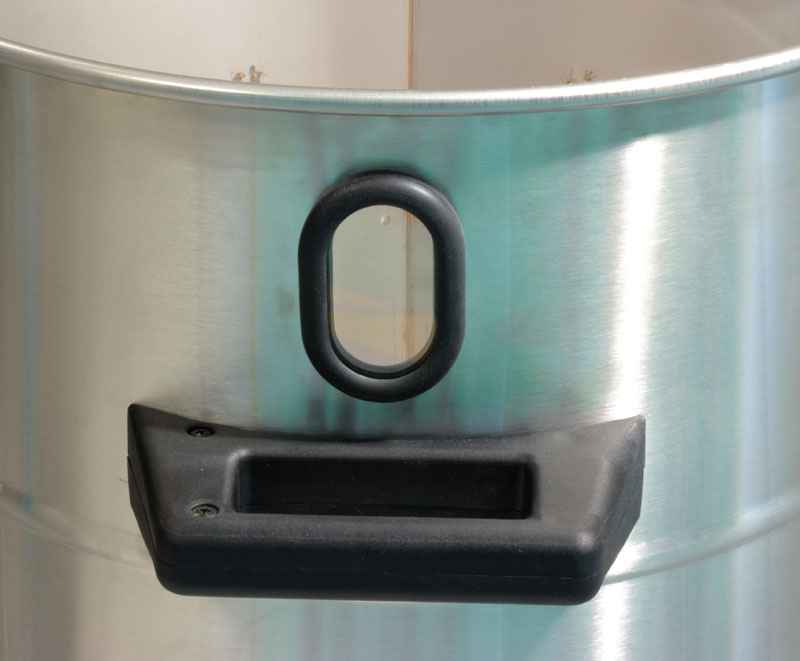

  • Sight glass installed on recovery tank
  • Optional front-mounted floor tool, 28″ (71 cm), is available for larger surface areas

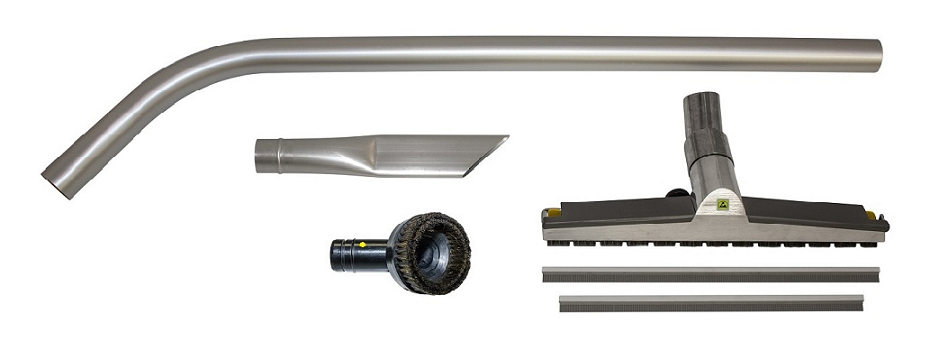

  • Includes a complete static dissipative tool kit
  • Conductive wheels

Specifications

SpecificationTiger-Vac PDC-200 (60L/100L) HEPA ORDLOC (DT) series
Tiger-Vac seriesPDC-200 (60L/100L) HEPA ORDLOC (DT)
Motor1.5 HP, 1,150 W (120 V or 230 V single-phase) · 2 HP, 1,725 W (230, 460 or 575 V three-phase)
TEFC motorYes
Amperage13.2 A (120 V) · 6.6 A (230 V single-phase) · 5 A (230 V three-phase) · 2.5 A (460 V) · 1.5 A (575 V)
Frequency60 Hz
Airflow600–700 CFM
Sound level (EN ISO 11203)72 dB(A)
Suction inlet4″ (elbow or tube)
CartDetachable tank (DT)
Filter typeStar-shaped + HEPA
Filter cleaningManual filter shaker (MFS)
Recovery capacity (dry)16 gal (60 L) or 26 gal (100 L)
Size L × W × H32 × 26 × 54.5″ (60 L) · 32 × 26 × 61.5″ (100 L)
Weight (vacuum only)147 lb
Cord length30 ft
Power plugNot included

Source: Tiger-Vac published specifications (North America), checked November 2026. Where a model comes in several versions, values are listed per version. Specifications can change; confirm with NIKA Sales when you request your quote.

Download the Tiger-Vac PDC-200 HEPA ORDLOC brochure (PDF)
