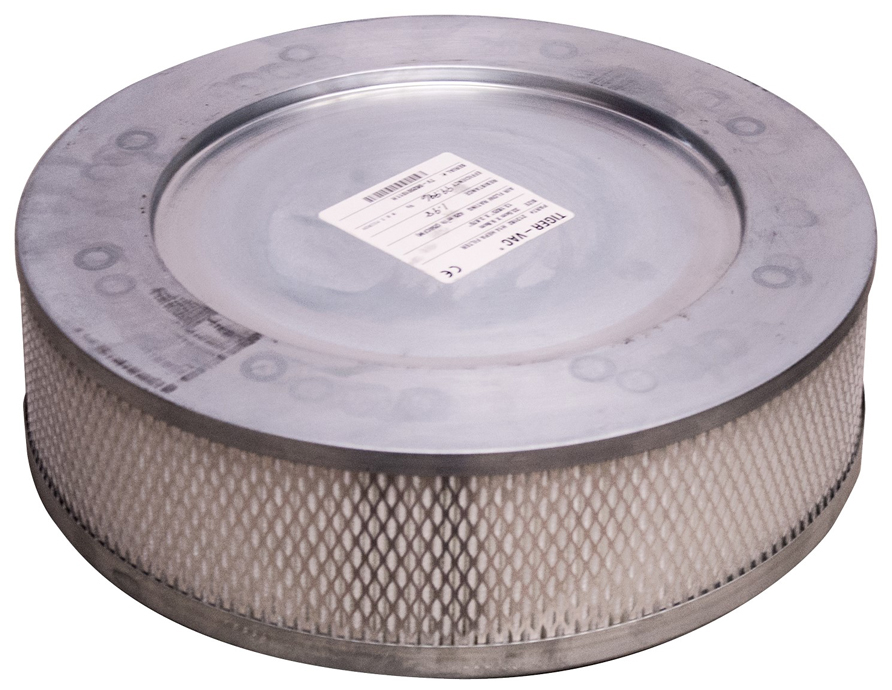

HEPA filter with an efficiency of 99.995% at 0.3 microns – optional
ULPA filter with an efficiency of 99.999% at 0.12 microns – optional
Cleanroom compatible with ISO Class 4 (former Class 10). Can be used in the Pharmaceutical industry
Designed to be attached to process machines and for general cleanup
Can also be used for the recovery of tablets in the Pharmaceutical industry
Continuous duty single-phase or 3-phase (TEFC)
Automatic Reverse Purge (ARP) with static dissipative reverse purge cartridge
Available in a fixed or mobile unit
All stainless steel Type 304/316 construction
For dry recovery only (liquids can be recovered into a separate tank)

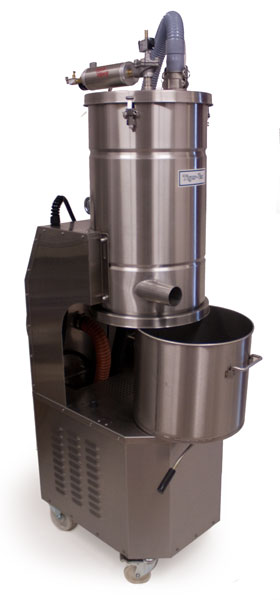

Detachable recovery tank for easy disposal of recovered materials
Vertical mounting for areas with space constraints
4 wheels for easy maneuverability
Motor and switch for use in the presence of conductive metal dust is available. North America: Class II, Group E Europe: Dust Group IIIC
Other motor performances available
CD EX Series IECEx 3rd Party Certified
Ex d IIB T4 Gb
Ex t IIIC T135°C Db IP65
IECEx LCI 10.0040 X
Certified for providing an Equipment Protection Level of EPL Db and EPL Gb
GUARANTEED for the Safe Recovery of Combustible/Conductive Dusts
ESD Safe Vacuum Systems for Hazardous Locations are designed to prevent ignition hazards.
We use metal parts or Static Dissipative Powder Coating to prevent Electrostatic Discharge (ESD)
Complies with NFPA 77 “Recommended Practice on Static Electricity”
