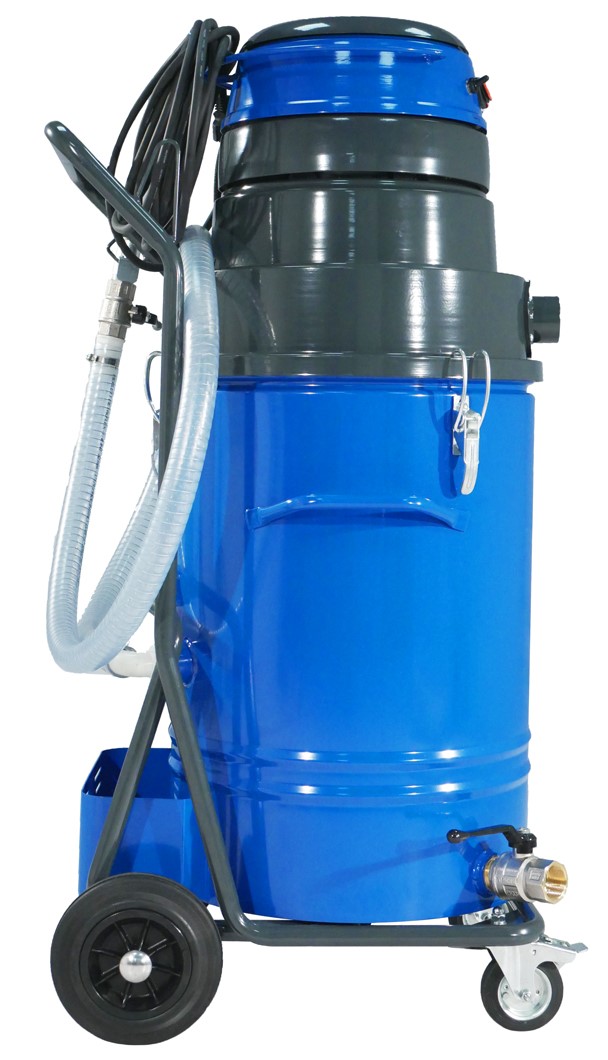

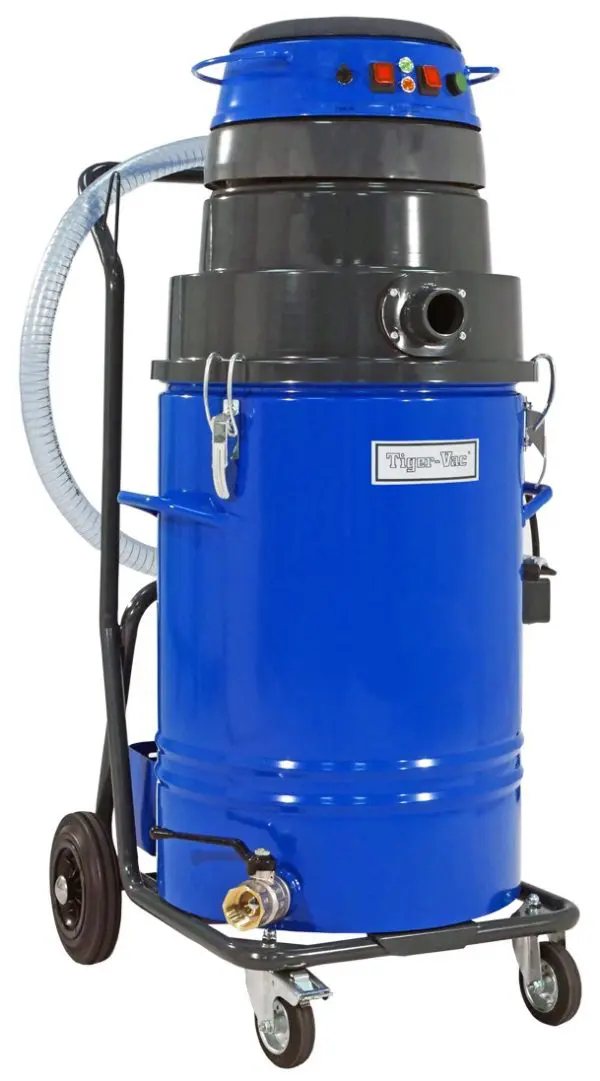

HOGOIL PUMP

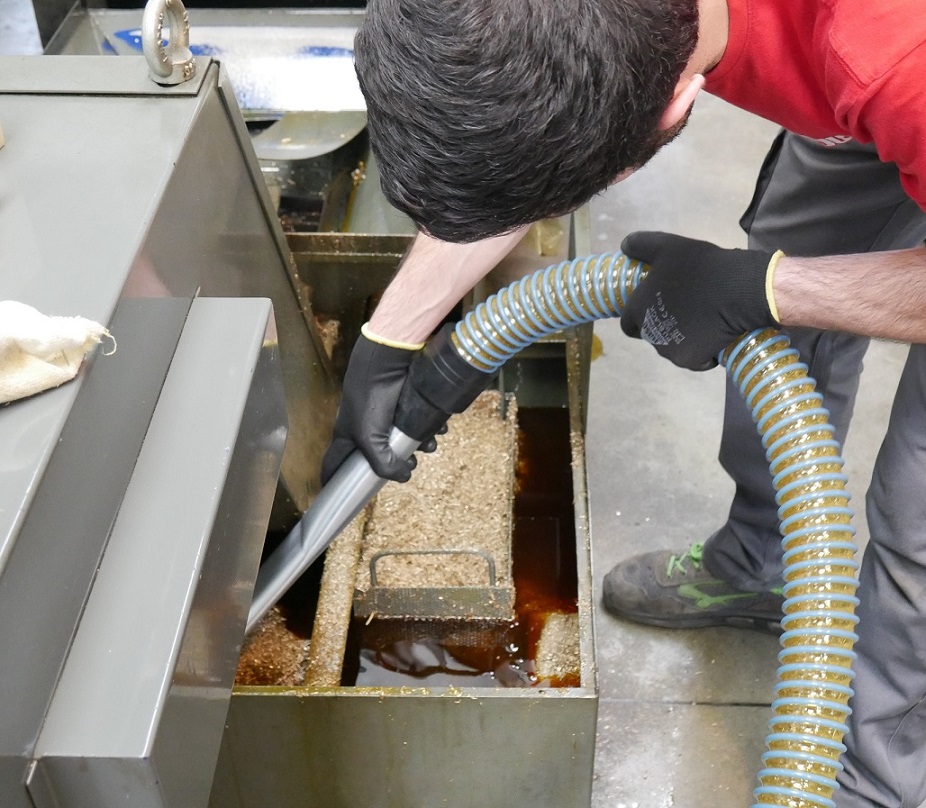

  • Designed for the recovery of metal chips and shavings mixed with oil. Can be used for both aqueous and synthetic-based coolants

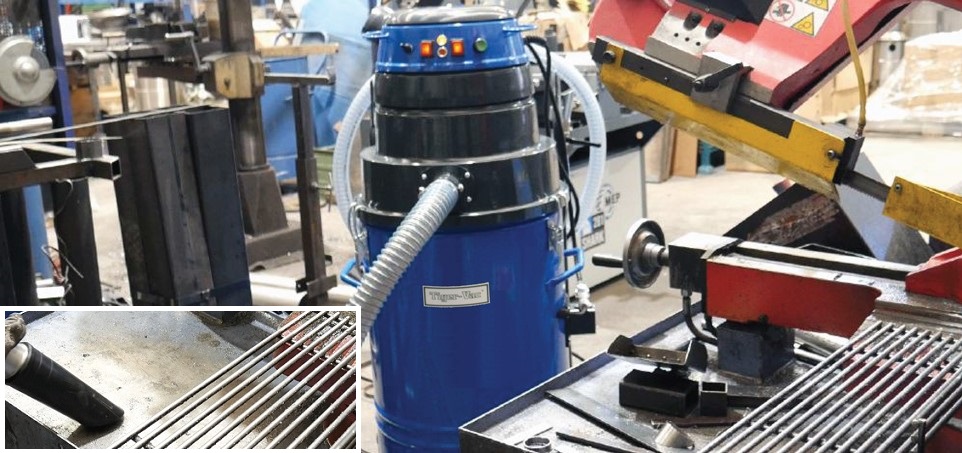

  • The HOGOIL’s compact size allows it to be quickly moved near and around machinery to facilitate machinery maintenance and minimize downtime
  • Single phase, dual motors – 2-stage heavy-duty bypass type
  • The electric pump, with a flow rate of 100 liters/min. (26 gallons/min.), is included. It allows recovered liquids to be pumped back into the machinery
  • Equipped with 3 independent switches (one switch for each motor and a separate switch for the electric pump). There is also an indicator light for when the maximum liquid recovery capacity has been reached
  • The electronic float valve automatically stops the vacuum when the container is full

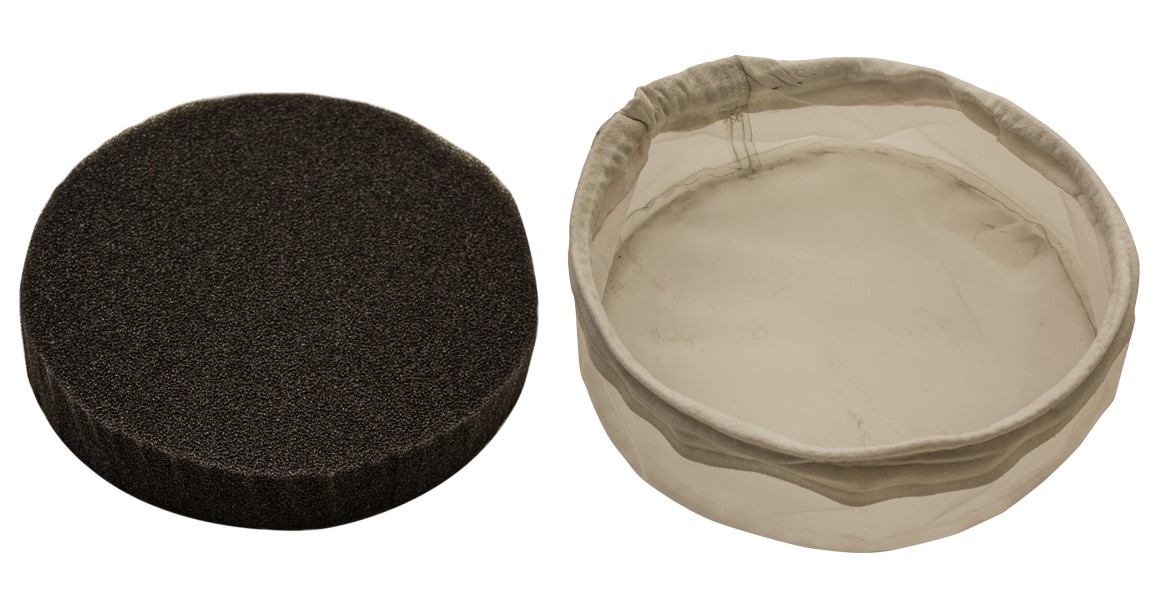

  • There are two filters installed upstream from the motor – a foam filter and a Dralon pre-filter

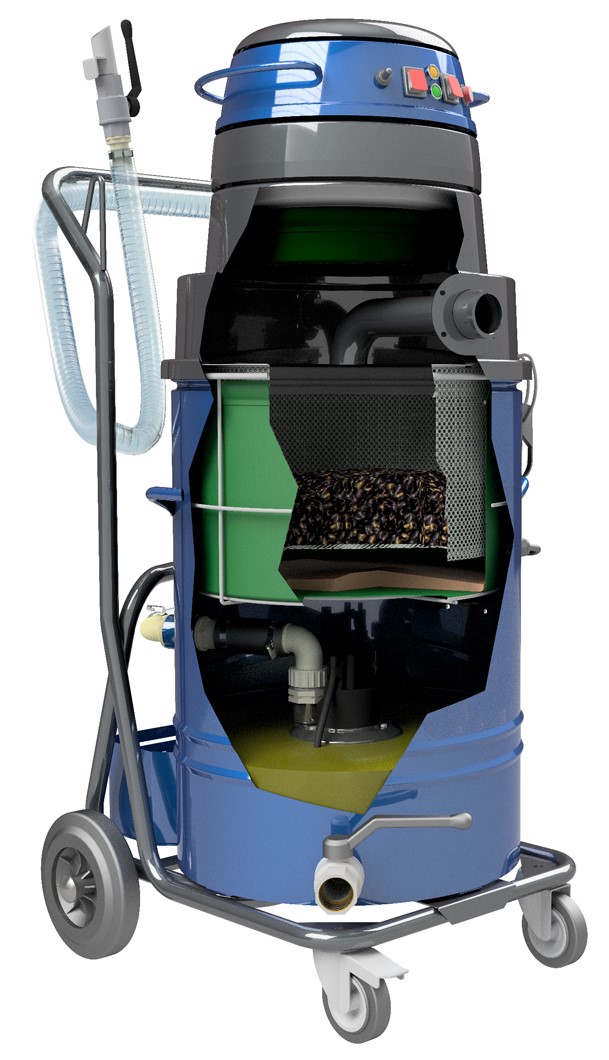

  • The 2″ (50 mm) suction inlet is positioned below the filters allowing for the recovery of both liquids and solids at the same time

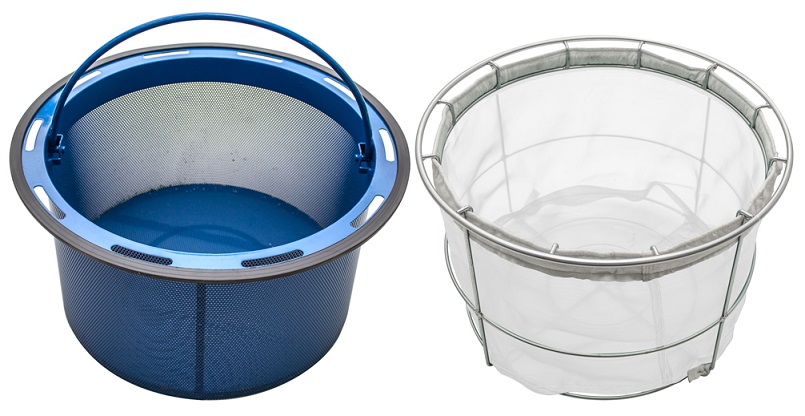

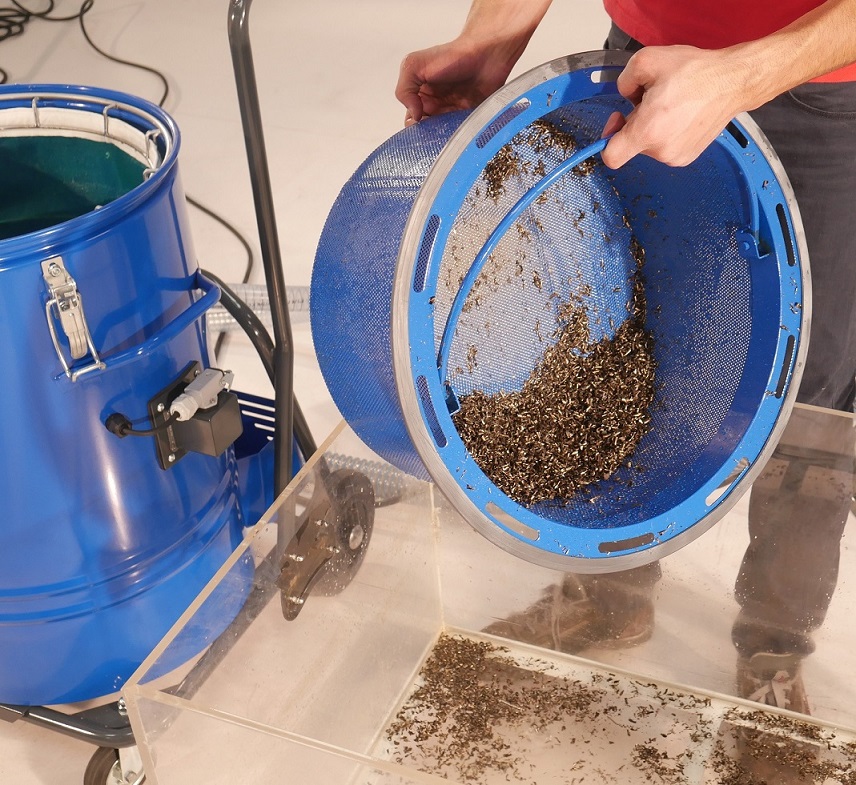

  • Metal chips and shavings are collected in the removable sieve basket
  • The HOGOIL PUMP is also equipped with a polypropylene mesh filter (300 microns) which is used in conjunction with the sieve basket. The mesh filter protects the pump from very fine chips/shavings and it also cleans/filters the oil as it passes through the sieve basket allowing the recovered oil to be re-used

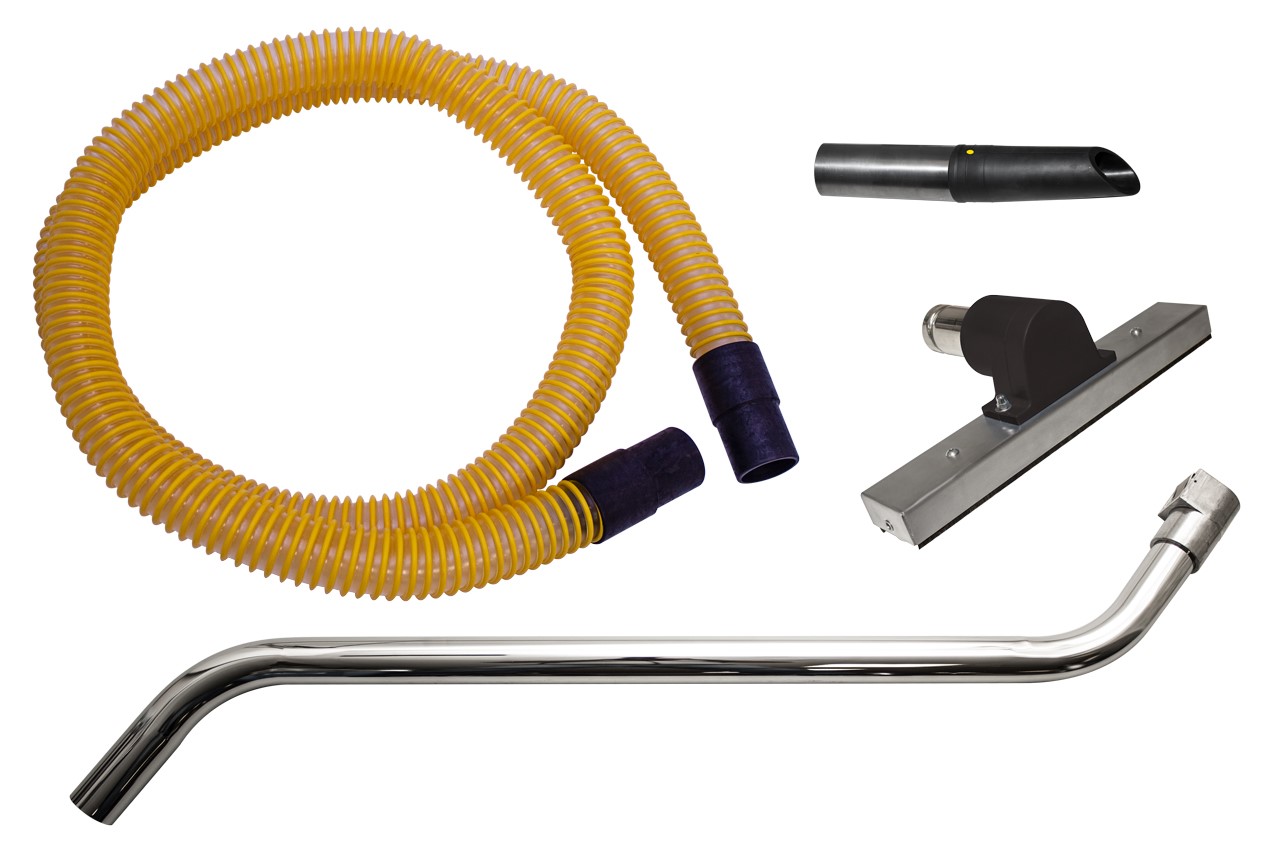

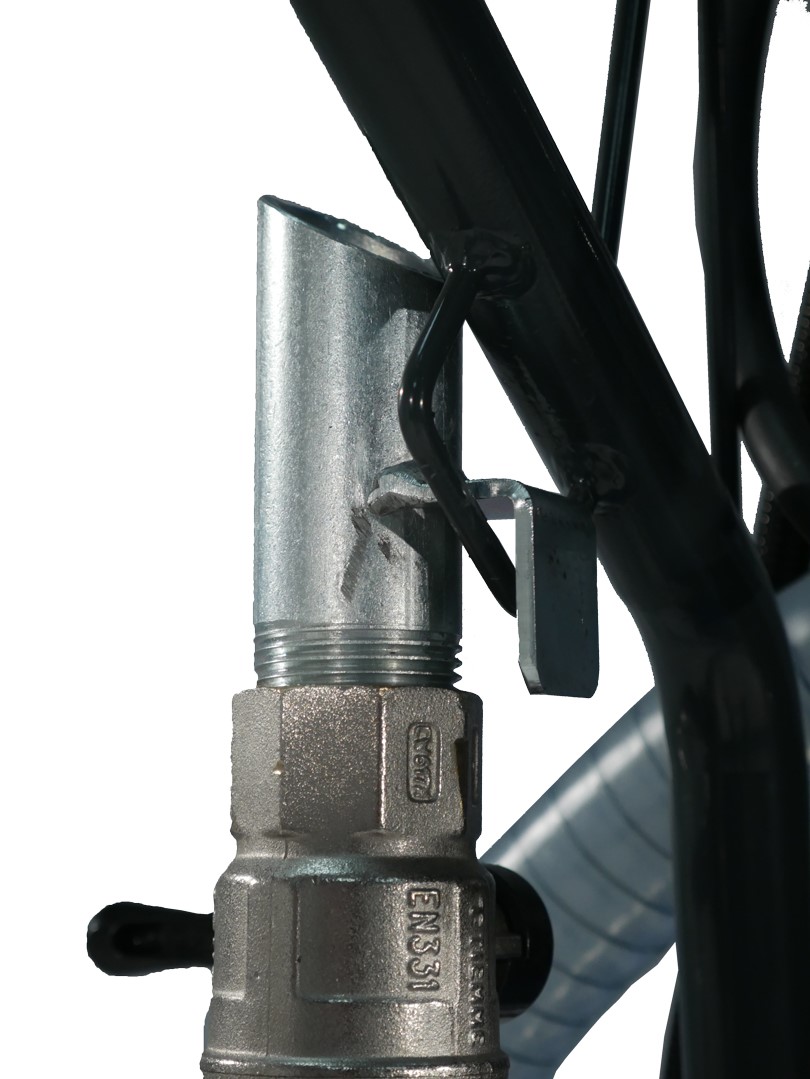

  • A discharge hose with a nozzle is included for use with the pump. The discharge nozzle is equipped with a ball valve
  • A 1.25″ drain valve is also installed on the container
  • Oil-resistant suction hose and a variety of optional accessories are available

Specifications

SpecificationTiger-Vac HOGOIL PUMP
Tiger-Vac part no.112652A
Voltage120 V
Frequency60 Hz
PhaseSingle
Wattage2040 W
Power2.7 HP
Amperage15.2 A
Airflow200 CFM
Max. vacuum90″ H₂O
Sound level (EN ISO 11203)75 dB(A)
Power plug20 Amps
Suction inlet2″

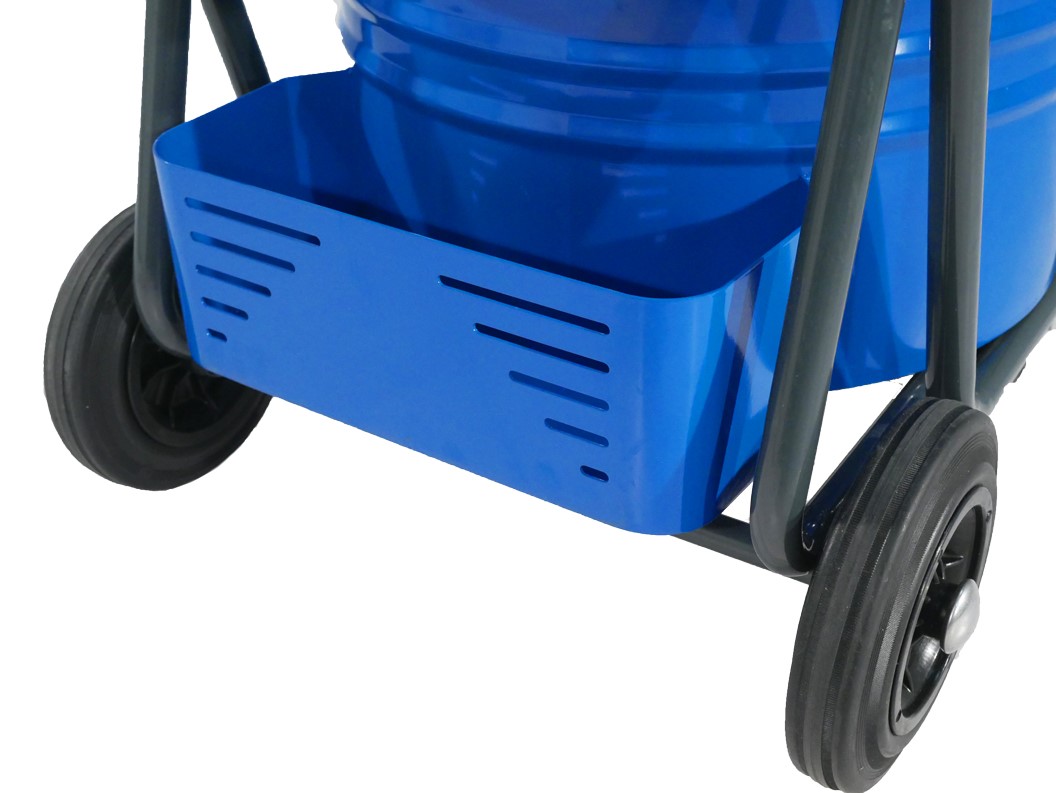

Cart2+2 Wheels
Filter area1.3 ft²
Dust recovery tank8 gal
Liquid recovery capacity24 gal
Length26″
Width22.5″
Height49″
Weight (vacuum only)127 lb

Source: Tiger-Vac published specifications (North America), checked November 2026. Where a model comes in several versions, values are listed per version. Specifications can change; confirm with NIKA Sales when you request your quote.
