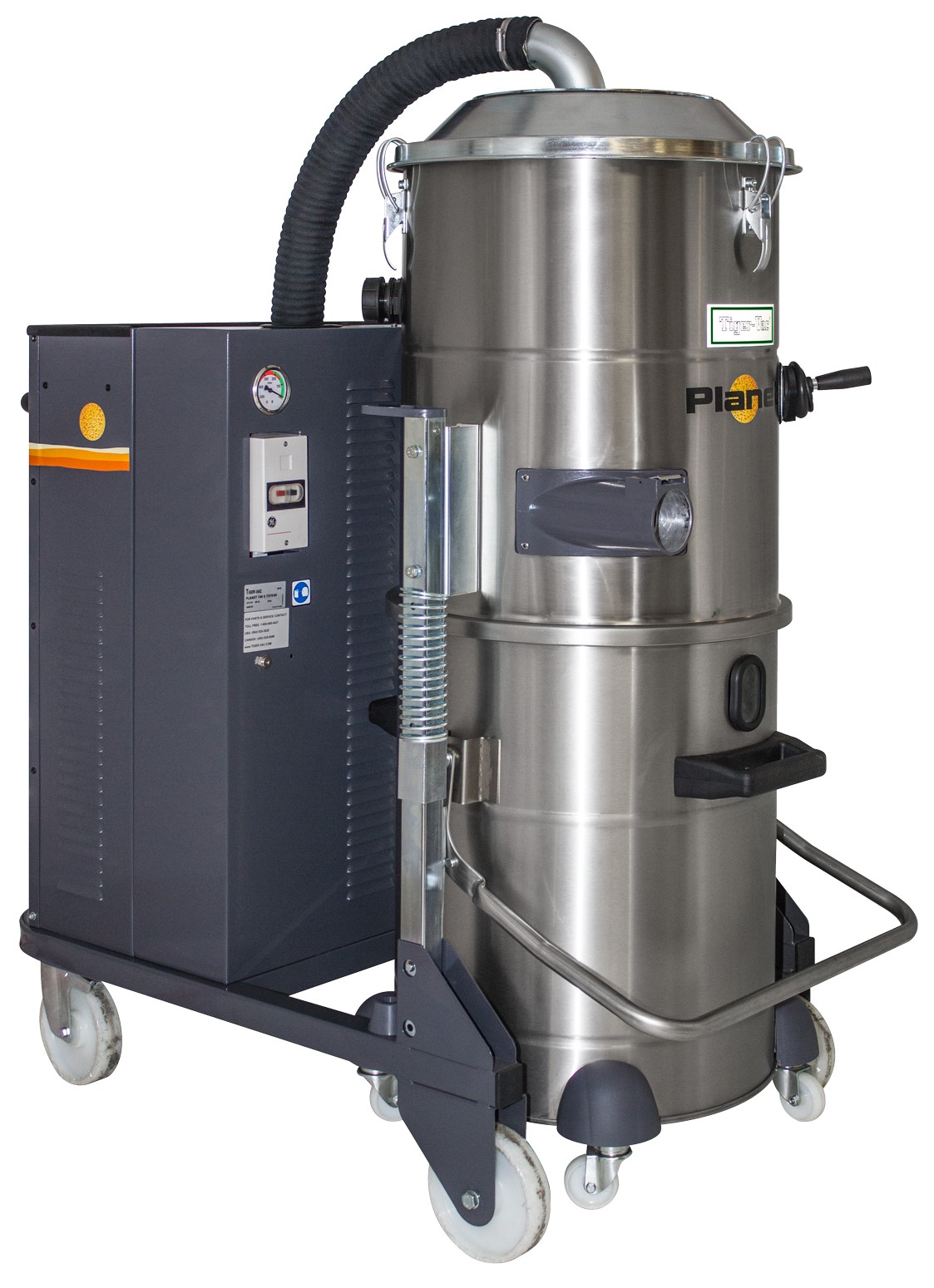

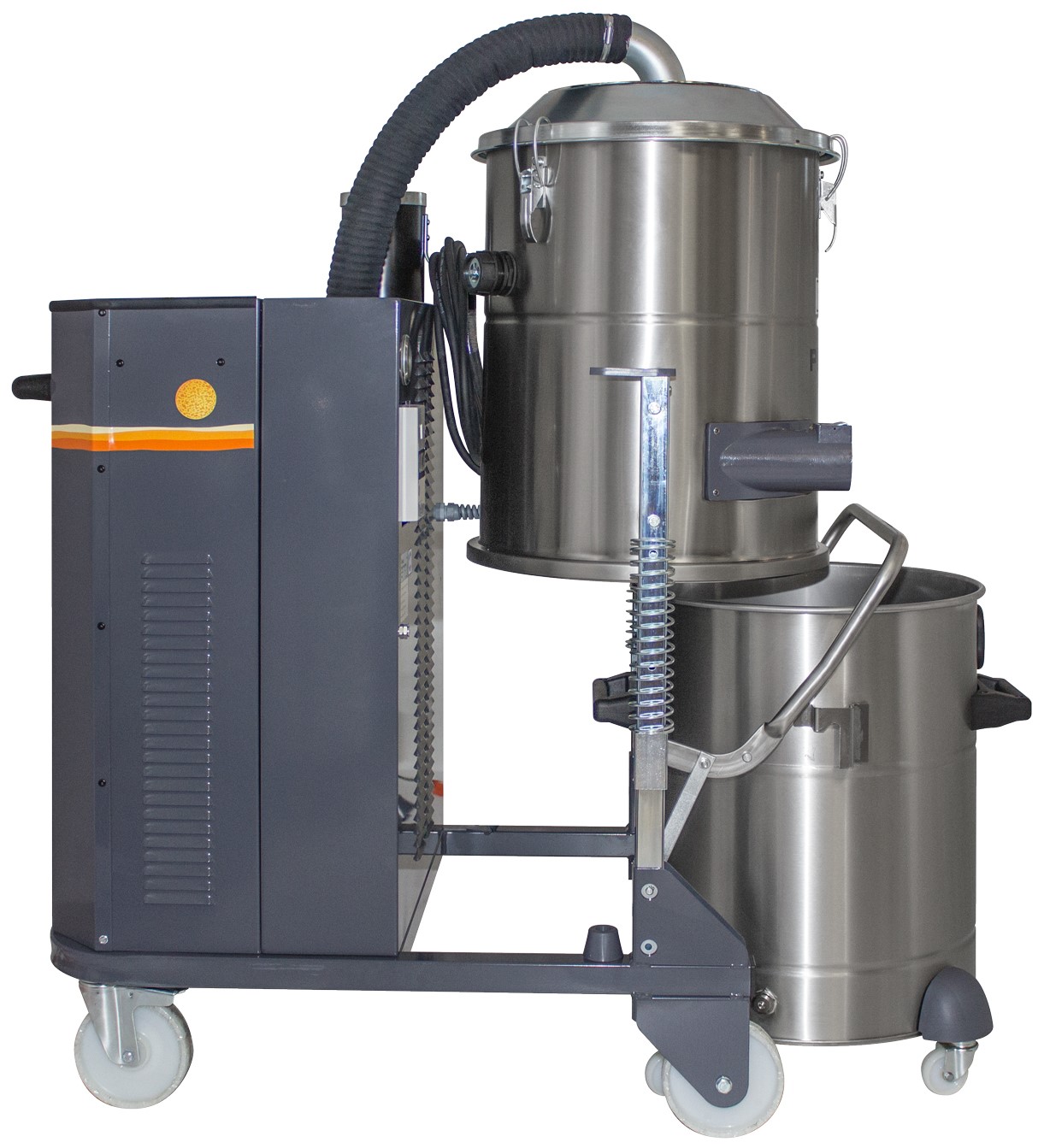

| Specification | Tiger-Vac PLANET 740S |
|---|---|
| Tiger-Vac part no. | 111218A1 (460 V) · 111218A2 (208-230 V) · 111218A5 (575 V) |
| TEFC motor | Yes |
| Voltage | 460 V · 208-230 V · 575 V |
| Frequency | 60 Hz |
| Phase | Three |
| Wattage | 4600 W |
| Power | 6 HP |
| Amperage | 9 A (460 V) · 15.6 A (208-230 V) · 7.6 A (575 V) |
| Airflow | 294 CFM |
| Max. vacuum | 155″ H₂O |

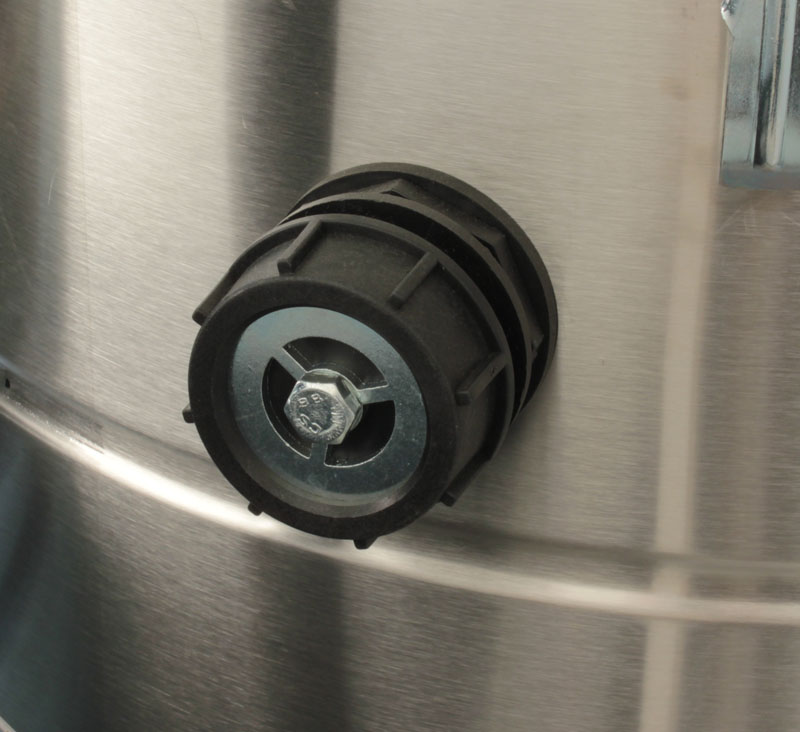

| Vacuum relief valve setting | 110″ H₂O |
| Sound level (EN ISO 11203) | 74 dB(A) |
| Power plug | Not included |

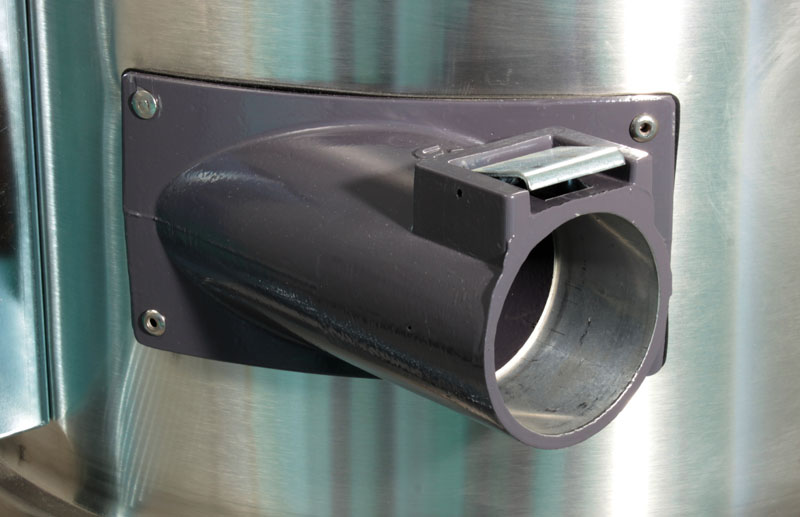

| Suction inlet | 70 mm |
| Cart | Detachable tank (DT) |

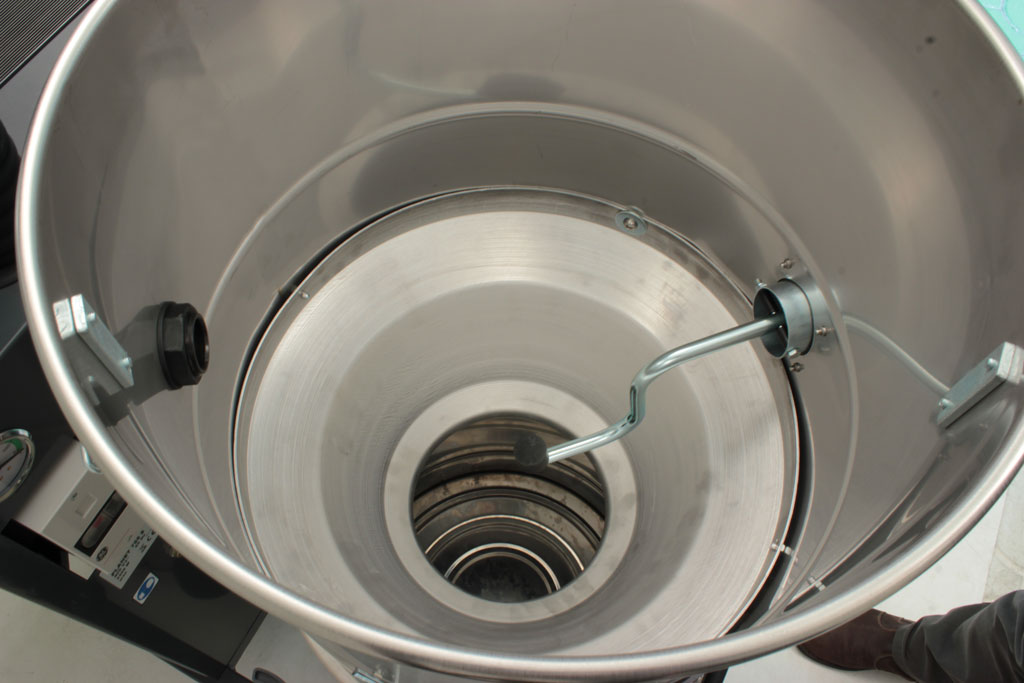

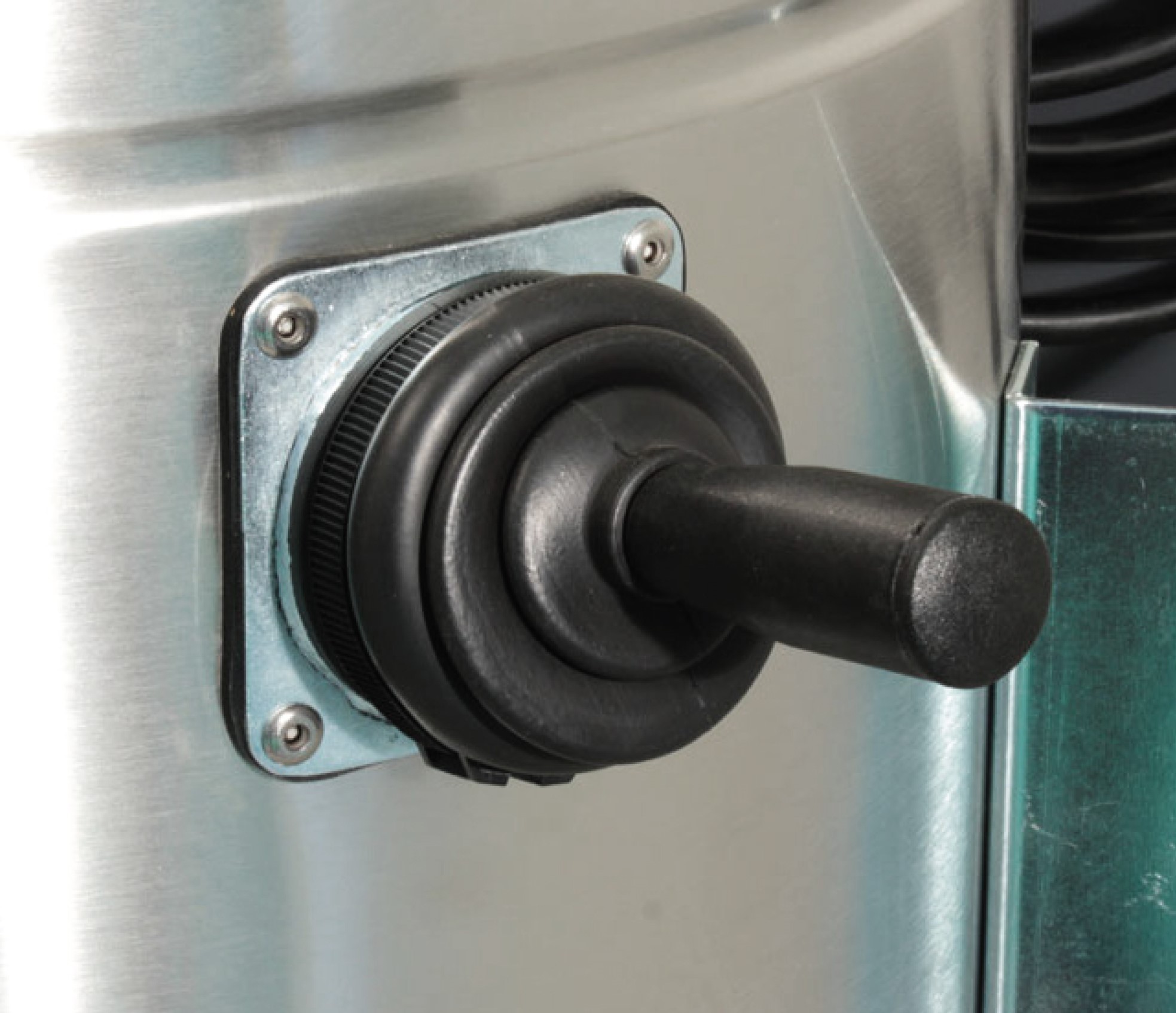

| Filter cleaning | Manual filter shaker (MFS) |

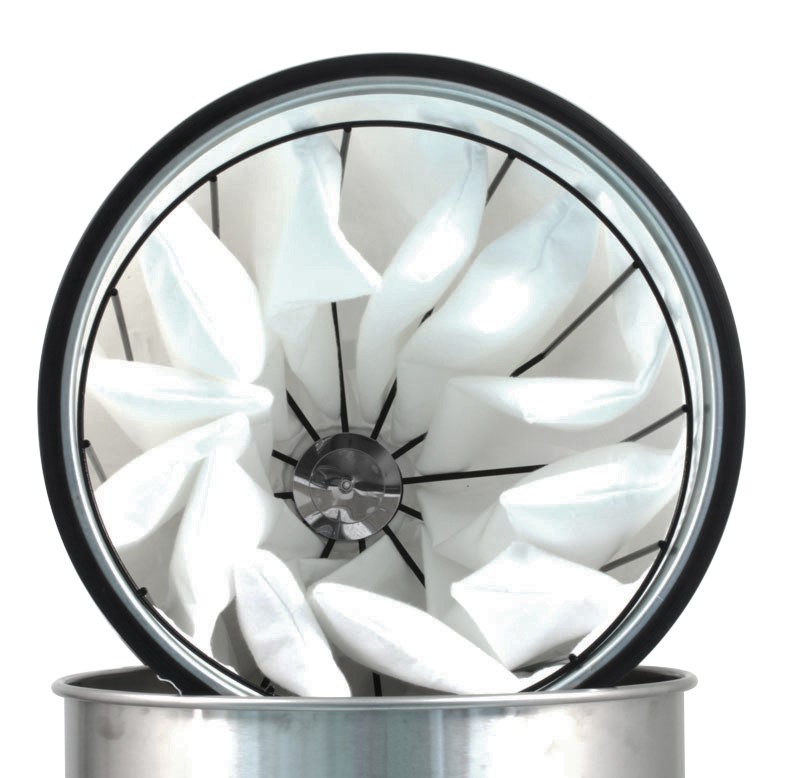

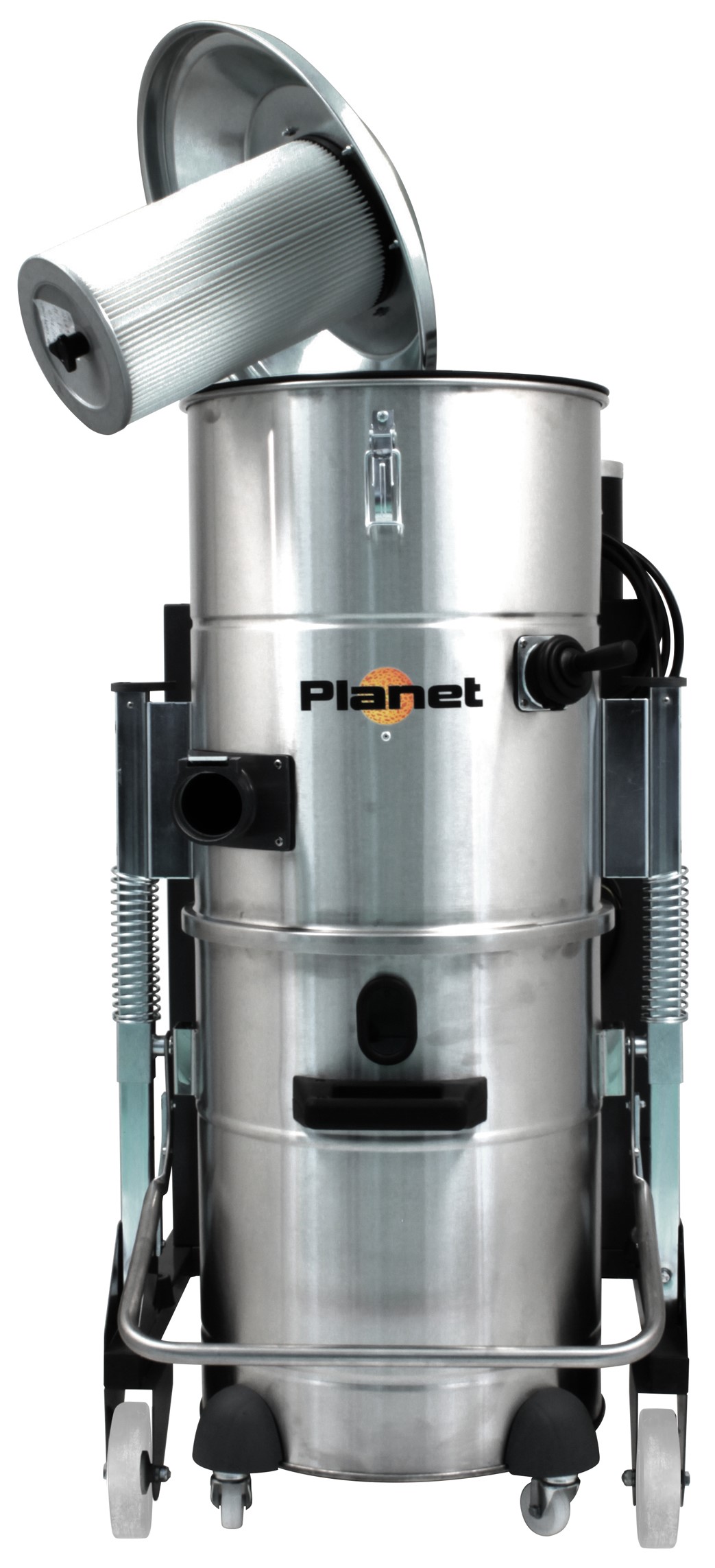

| Filter type | Star-shaped + Cartridge |
| Filter area | 21 ft² + 10.8 ft² |

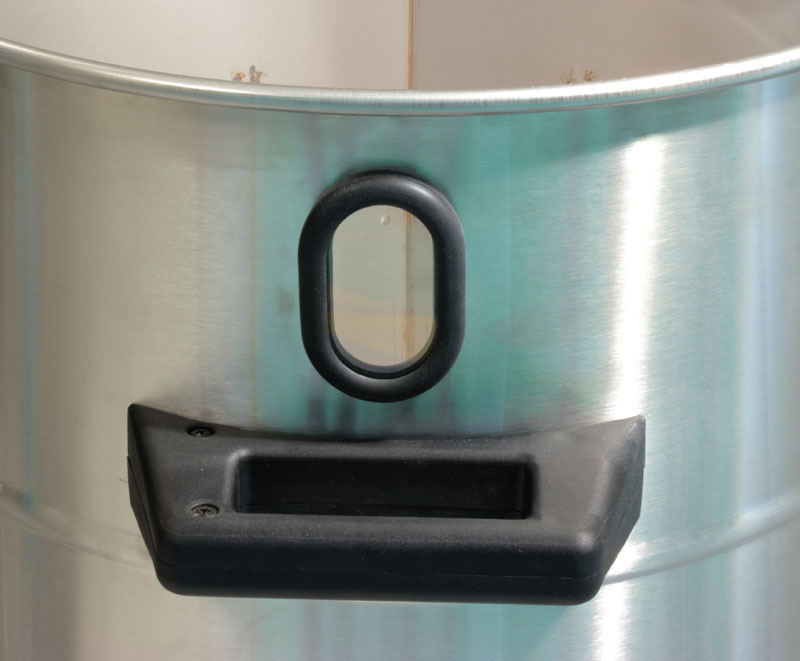

| Dust recovery tank | 26 gal |
| Length | 43″ |
| Width | 24.5″ |
| Height | 58″ |
| Weight (vacuum only) | 305 lb |
| Cord length | 30 ft |
Source: Tiger-Vac published specifications (North America), checked November 2026. Where a model comes in several versions, values are listed per version. Specifications can change; confirm with NIKA Sales when you request your quote.
