4D-300 (SDOH) SERIES

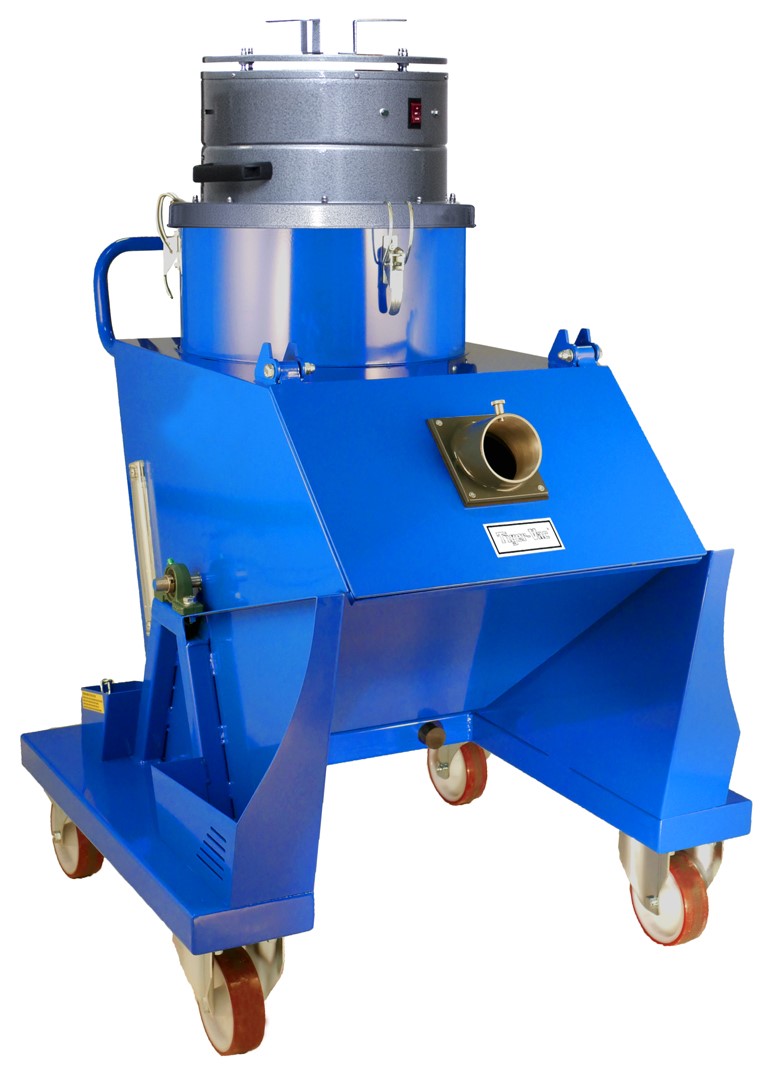

  • Electric industrial vacuum system with Self-Dumping Overturning Hopper for the recovery of large quantities of metal chips mixed with some oil/coolant
  • Powerhead with dual bypass/dual speed long life motors is mounted directly on the hopper
  • The internal volume of the hopper is 52 gal. (200L). A screen inside the hopper separates the upper part from the lower part. It can recover 26 gal. (100L) of metal chips and 26 gal. (100L) of oil/coolant

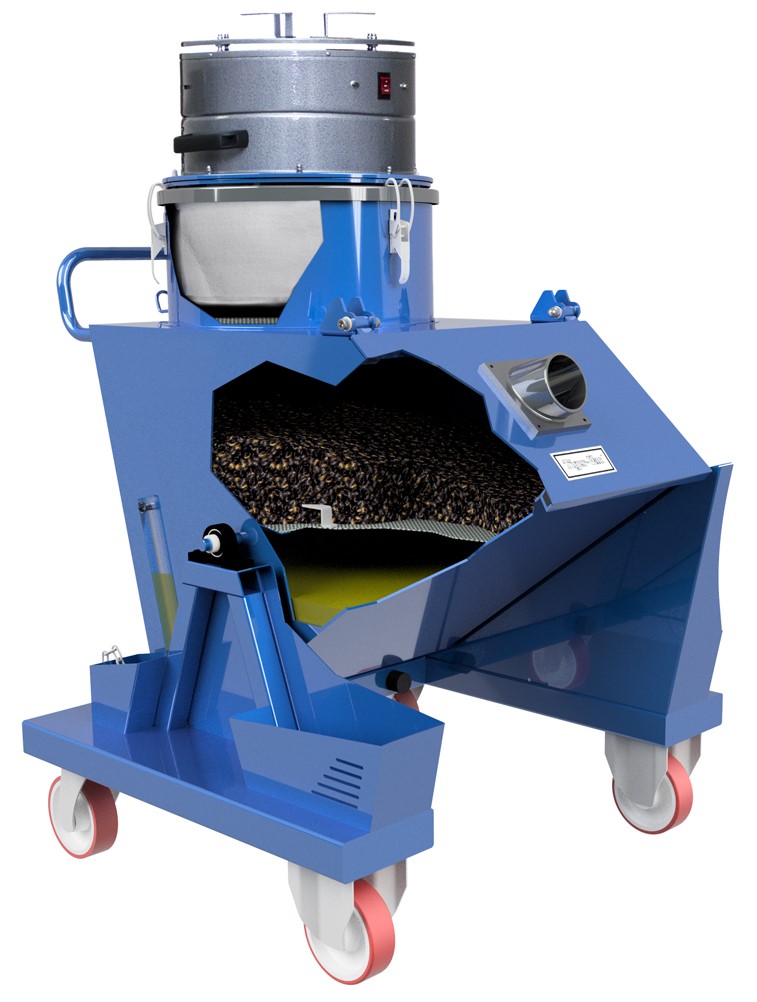

  • The metal chips are separated from the oil inside the hopper. The metal chips are recovered in the upper part of the hopper and the oil is deposited at the bottom of the hopper. The screen can be removed and 52 gal. (200L) of chips can be recovered
  • The oil is emptied using the 1″ drain valve

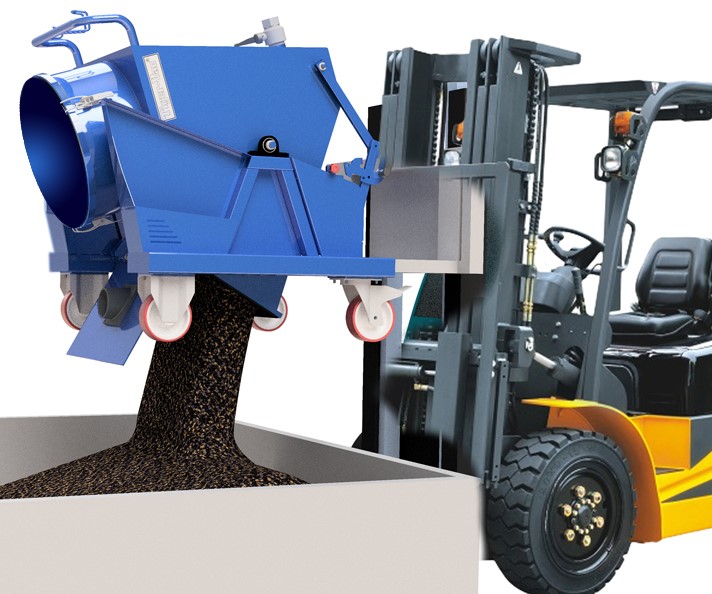

  • The Recovered metal chips are easily emptied using a forklift to lift and dump the contents of the hopper. There is no manual lifting required. The manually operated dumping mechanism is easy to use

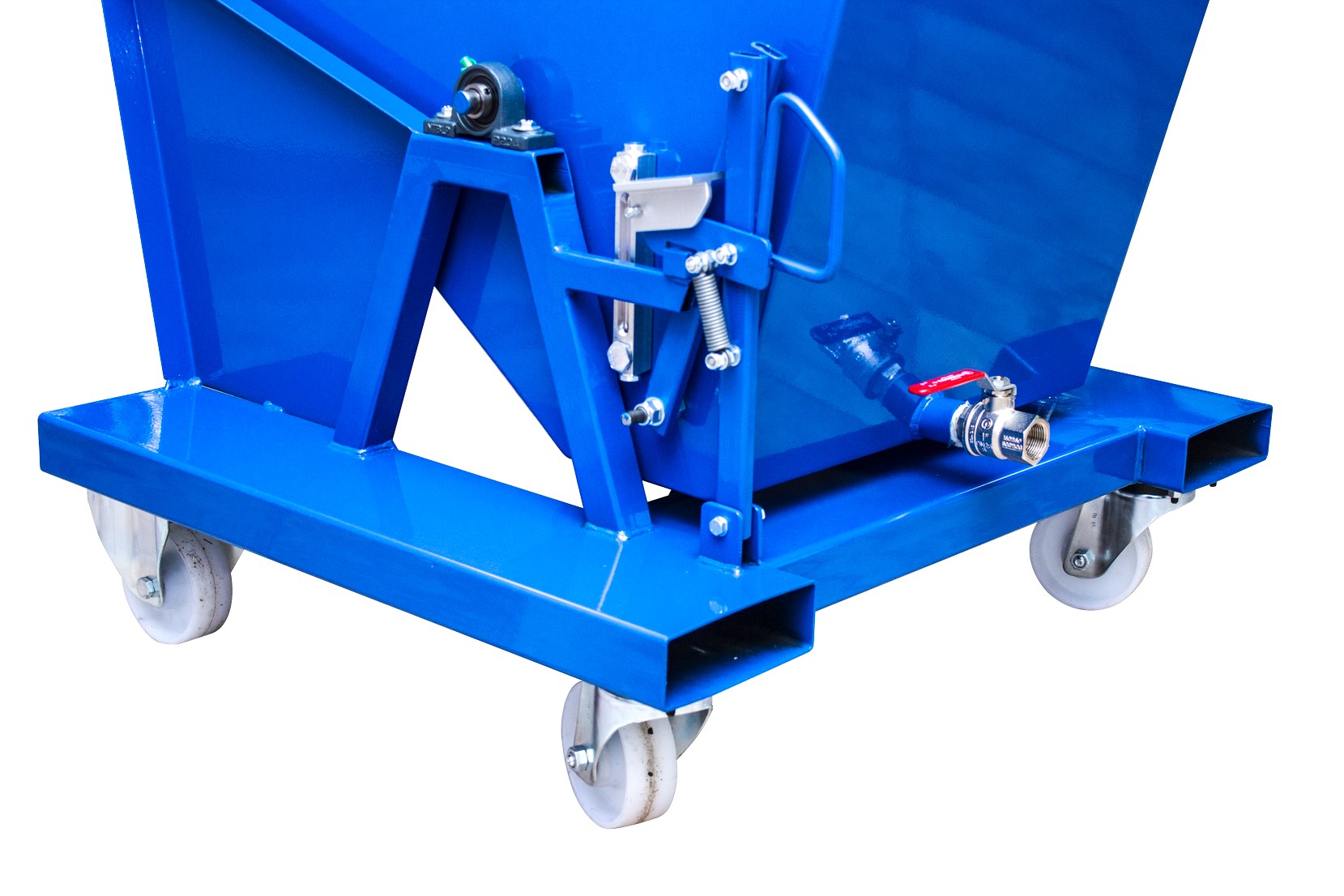

  • Four 5″ (125 mm) wheels allow for maximum maneuverability
  • A washable main cloth filter is installed upstream from the motors

Specifications

SpecificationTiger-Vac 4D-300 (SDOH) series
Tiger-Vac part no.112630A · 112632A
Voltage120 V
Frequency60 Hz
PhaseSingle
Wattage2040 W (112630A) · 2400 W (112632A)
Power2.7 HP (112630A) · 3.2 HP (112632A)
Amperage15.2 A (112630A) · 21 A (112632A)
Airflow200 CFM (112630A) · 220 CFM (112632A)
Max. vacuum90″ H₂O (112630A) · 107″ H₂O (112632A)
Power plugNot included
Suction inlet90 mm
CartCarriage Base (CB)
Recovery capacity (tank)52 gal
Length43″
Width37″
Height57″
Weight (vacuum only)365 lb
Cord length33 ft

Source: Tiger-Vac published specifications (North America), checked November 2026. Where a model comes in several versions, values are listed per version. Specifications can change; confirm with NIKA Sales when you request your quote.
